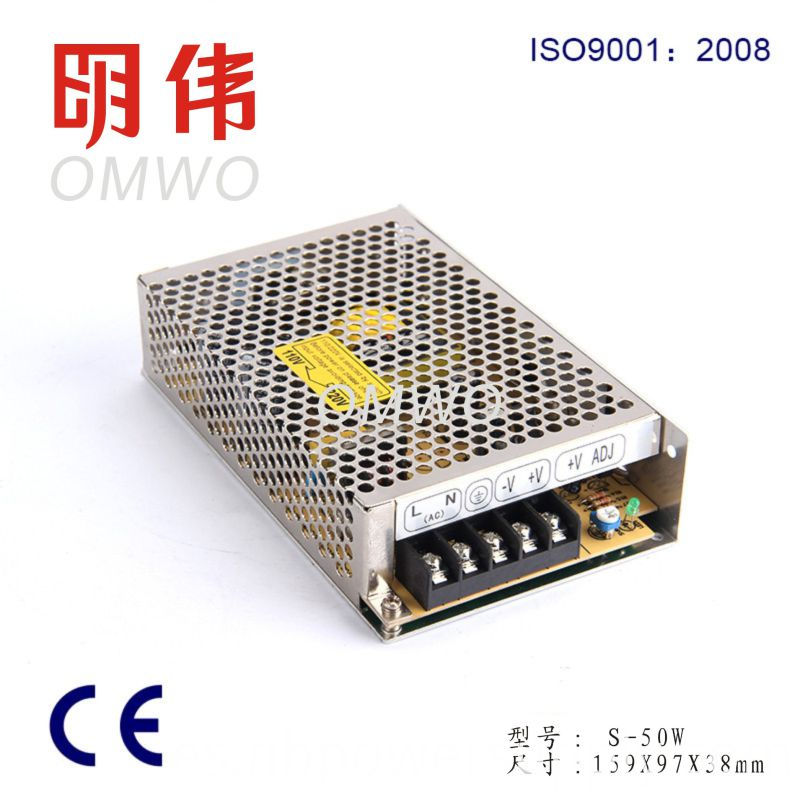

S-50 5-48V 50W de salida única Fuente de alimentación de conmutación de alta eficiencia Fuente de alimentación
Home > Lista de Producto > Fuente de alimentación conmutada de salida única > S-50 5-48V 50W de salida única Fuente de alimentación de conmutación de alta eficiencia Fuente de alimentación

S-50 5-48V 50W de salida única Fuente de alimentación de conmutación de alta eficiencia Fuente de alimentación

    Tipo de Pago: L/C, T/T, Western Union, Paypal, Money Gram
    Cantidad de pedido mínima: 1
    productividad: 50000/Month
    Lugar de origen:  Zhejiang
    Capacidad de suministro: 50000/Month
    Certificados :  CE, UL, RoHS, ISO, CCC, CB, CSA

Información básica

Modelo:  S-50-2

Descripción del producto

Modelo N °: S-50-2 Garantía:> 2 años Voltaje de entrada: 24V Modo de inicio: autoencendido Fuente de alimentación conmutada Sistema de suministro de energía: Terminal Sistema de modulación de equipos de alimentación: PFAW Marca: Omwo Marca registrada: OMWO Origen: Zhejiang Tipo de salida : Potencia de salida única: 1 - 50W Modo de conexión: Serie Cambio Tensión de alimentación Modo de regulación: Tipo de modulación de frecuencia Transmisión de energía: Transmisión bidireccional Certificación: CE, UL, RoHS, ISO, CCC, CB, CSA Tamaño: 159 * 98 * 38mm Especificación: 159 * 98 * 38mm Código HS: 8504401990 Características \ n \ n1.Eficacia alta y buen precio \ n2.Elemento incorporado en el filtro EMI \ n3.100% prueba de grabación de carga completa \ n4.Red de salida baja y ruido \ n5.Protección: Sobrecarga / Sobretensión / Cortocircuito \ n6. GARANTÍA DE POR VIDA \ n \ nEspecificaciones
  MODEL S-50-5 S-50-12 S-50-24 S-50-48
Output DC Voltage  5V 12V 24V 48V
Rated current  10A   4.2A 2.1A  1A
Current range 0-10A  0-4.2A  0-2.1A 0-1A
DC power    50W  50.4W 50.4W 48W
Voltage ADJ.range  +10,-5%  ±10% ±10% ±10%
Voltage tolerance   ±2% ±1% ±1% ±1%
Ripple and noise  75mVp-p 120mVp-p 120mVp-p 200mVp-p
Intet stability  ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1% ±0.5% ±0.5% ±0.5%
Intput AC voltage range  AC100~240V 47~63Hz ; 240~370VDC
Current  1.3A/115V 0.65/230V
Effi ciency  78%  80%  83% 84%
AC Inrush current  Cold-start current 15A/115V 30A/230V
Leakage current  < 0.5mA/240VAC
Protection Overload  105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
   Over voltage  5.75~6.75   13.8~16.2V 27.6~32.4V 55.2~64.81
  200ms,100ms,30ms
Safety Setup,rise,hold up time 200ms,100ms,30ms
     Vibration  10~500Hz,2G 10min,/1 cycle
  Withstand voltage  Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
  Isolation resistance  Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
      ±0.03%/°C (0~50°C )
Environment Temperature coeffi cient
  Working temperature and humidity -10°C ~+60°C,20%~90%RH
  Store temperature and humidity -20°C ~+85°C,10%~95%RH
    Overall dimension  159×97×38mm   40PCS/CARTON
Other Weight  0.47Kg
Certificate CE EMC Authenticate  EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
   EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009

orte S-50 5-48V 50W Single Output High Efficiency Power Supply Switching Power SupplyS-50 5-48V 50W Single Output High Efficiency Power Supply Switching Power SupplyS-50 5-48V 50W Single Output High Efficiency Power Supply Switching Power SupplyS-50 5-48V 50W Single Output High Efficiency Power Supply Switching Power SupplyS-50 5-48V 50W Single Output High Efficiency Power Supply Switching Power Supply

Grupos de Producto : Fuente de alimentación conmutada de salida única
